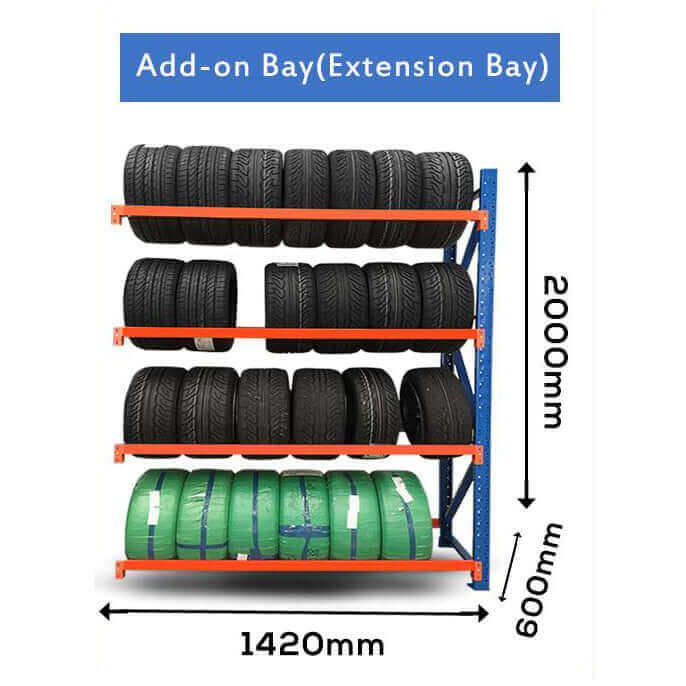

Tyre Racking 1.5mWx0.6mDx2.0mH Addon 300Kg/L

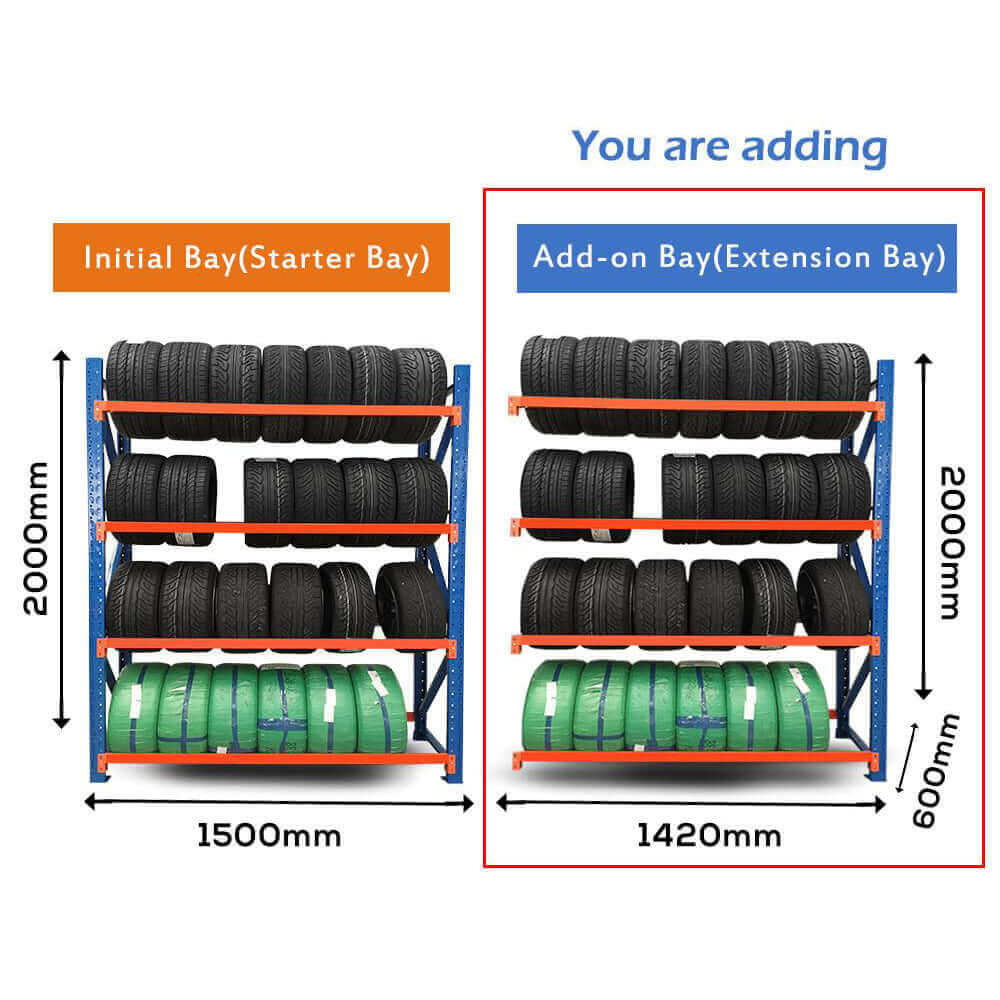

The Tyre Racking 1.5mWx0.6mDx2.0mH Addon 300Kg/L unit is designed to be added to an existing tyre rack to make a connected row. Importantly, it only comes with one blue upright and therefore will not stand alone.

Product Features

• 4 levels (tiers) as standard. However, you can purchase extra levels and other components. So you can customise your racking as needed
• The addon comes as a disassembled kit that includes everything you need: 1 blue upright, 8 orange beams and 16 steel locking pins
• Components slot together for easy DIY assembly. So no tools required
• Made from steel and powder coated for a strong and durable finish. So your investment will last

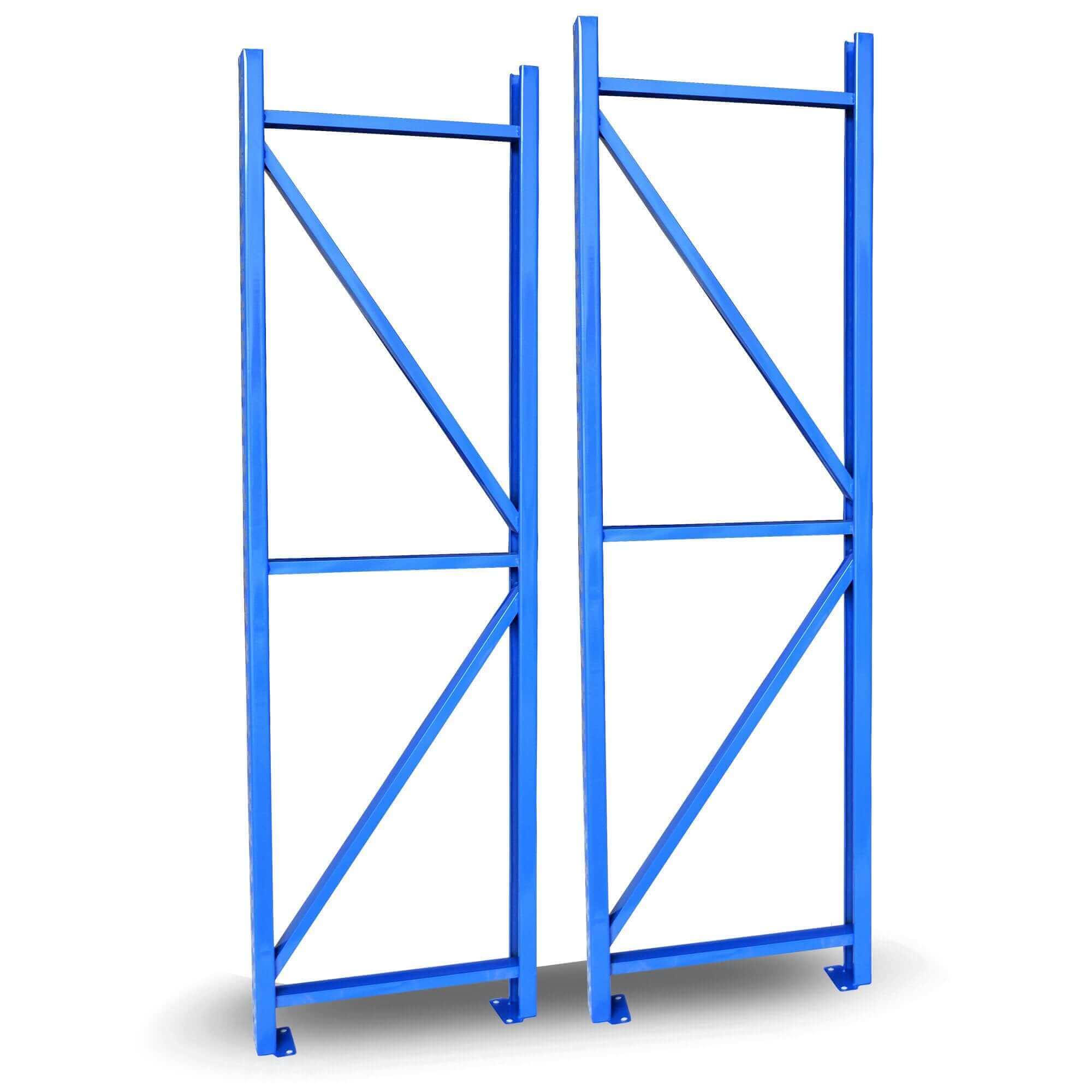

• Blue uprights come welded together as a single, solid piece for extra strength and rigidity. So no assembly required

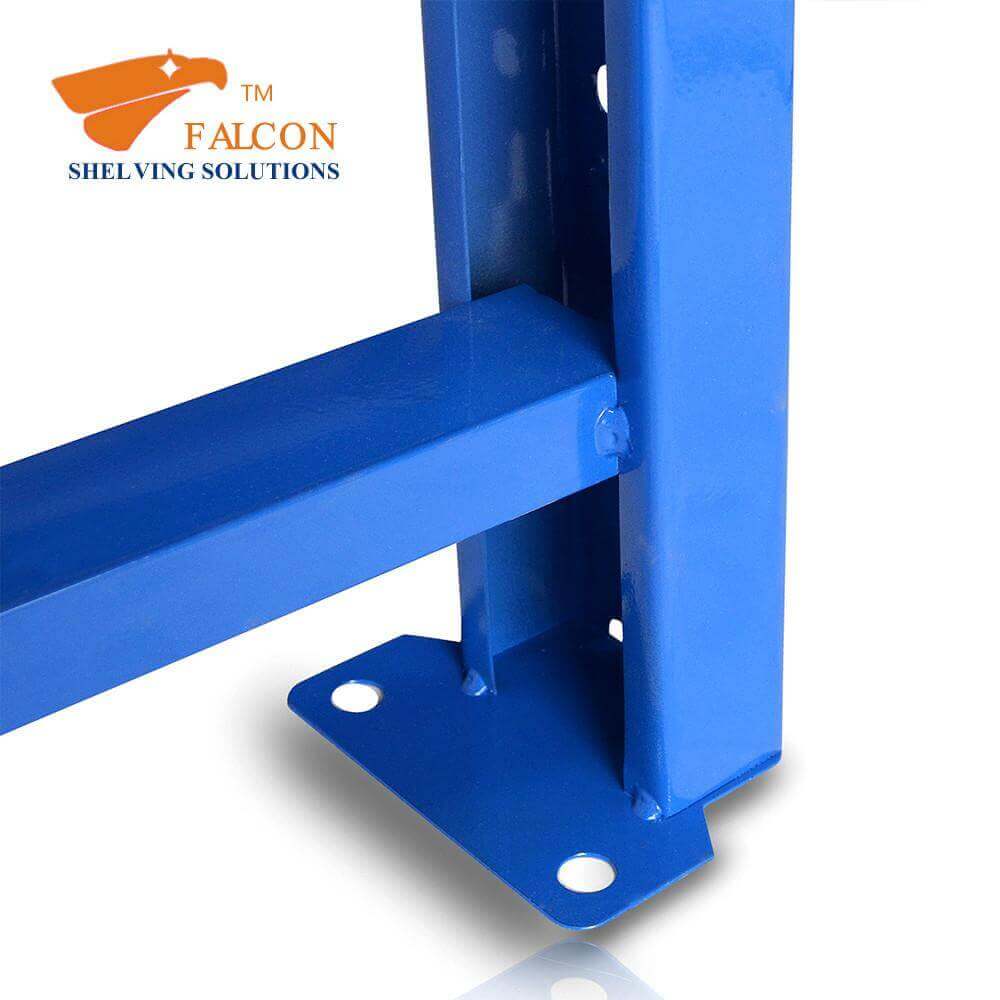

• Pre-drilled holes in the footplates. So the units can be fastened to the floor for added safety and stability

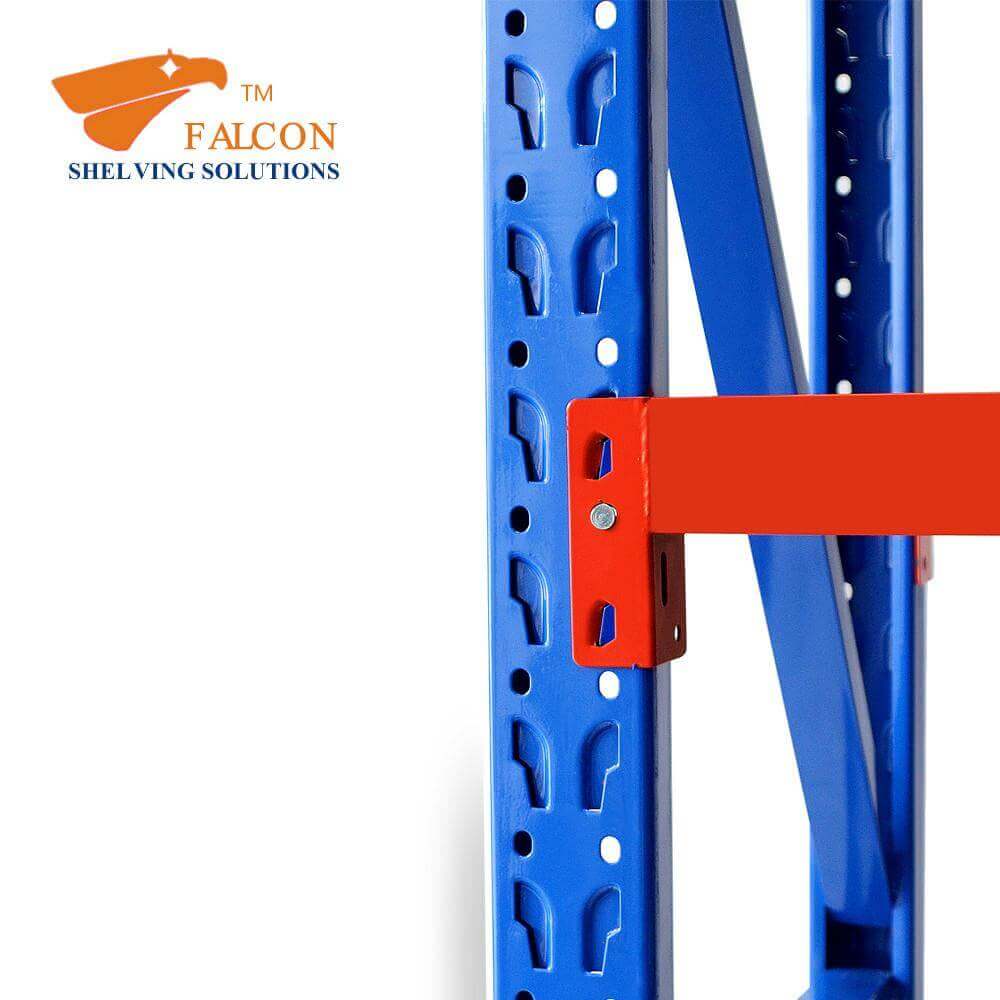

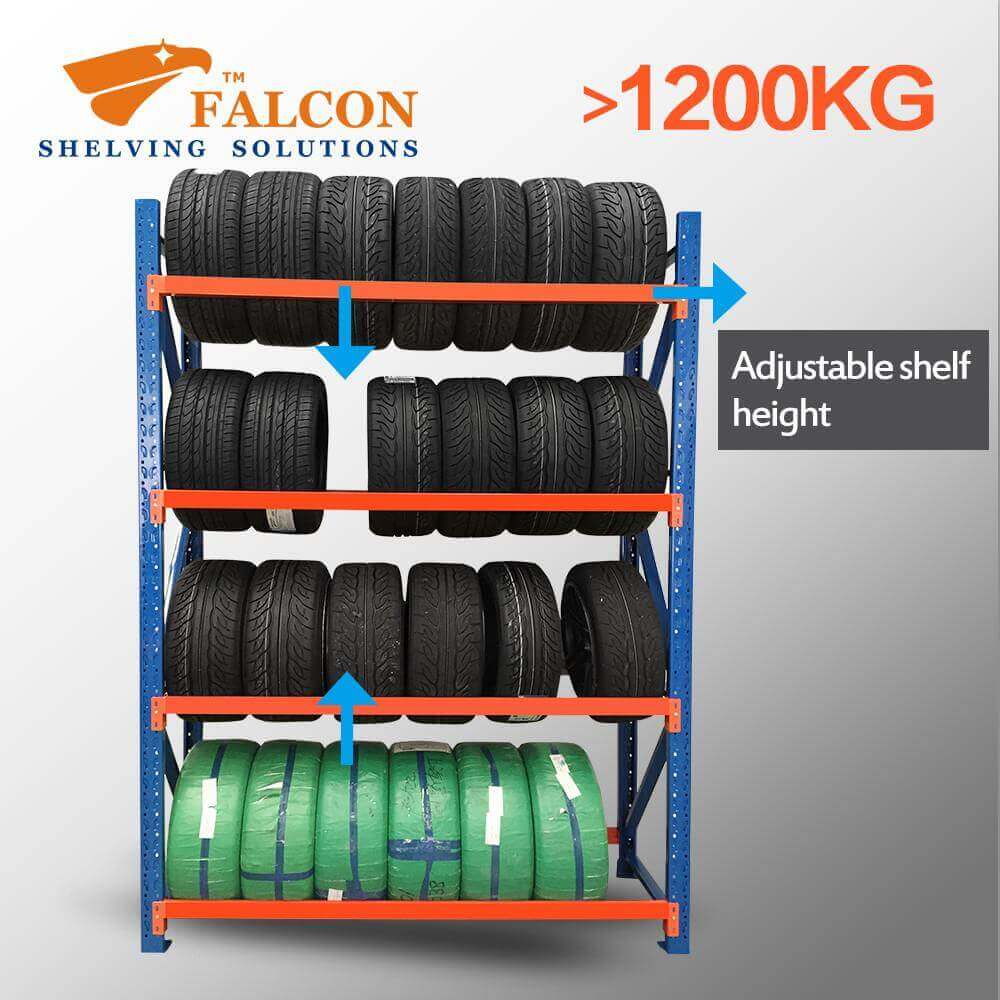

• Beams are easily adjustable up and down. So set them to any height required

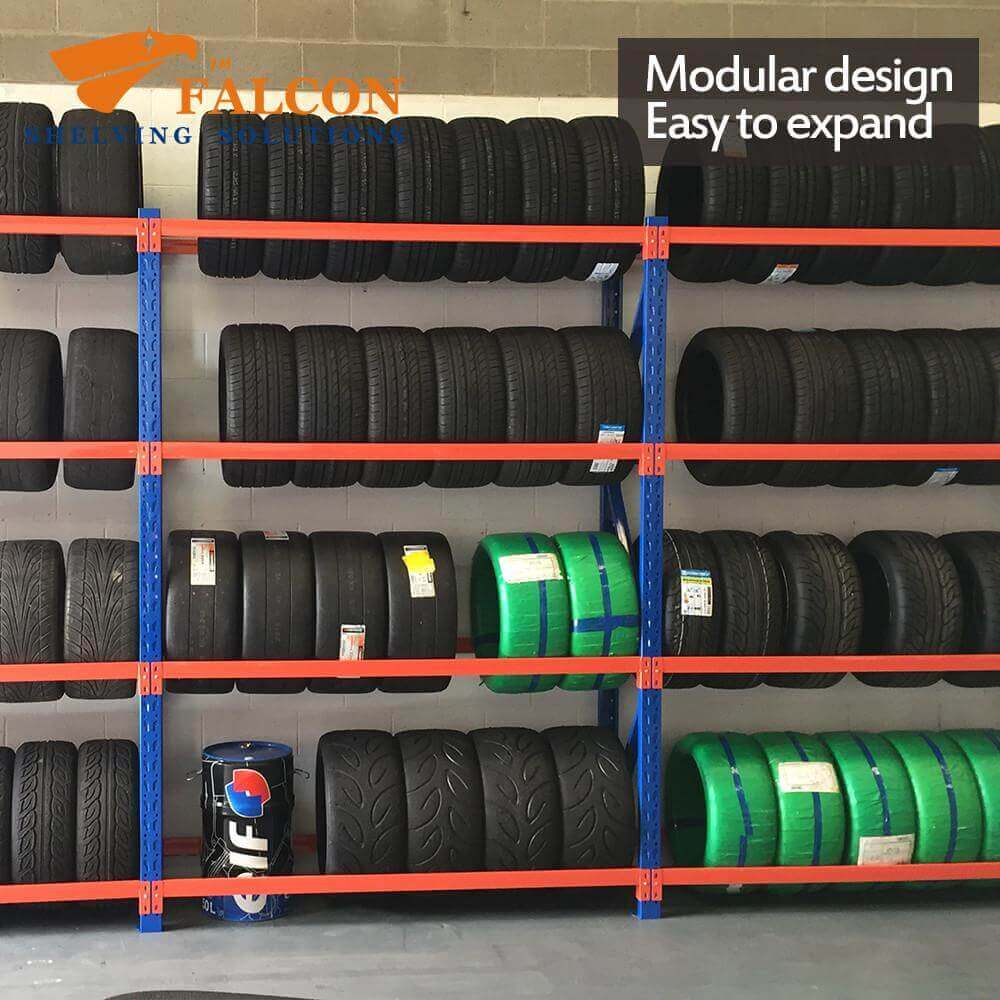

• Connect a starter bay with one or more addon bays to create a shelving row of any length

Specifications

Capacity

• • 300KG per level (Uniformly Distributed Load)
  • 1200KG Total Capacity (UDL) per Bay

Uprights

• • Length: 2000mm
  • Materials(main poles): 40mm x 80mm x 1.0mm cold rolled steel with powder coating

Beams

• • Length: 1340mm
  • Material: 40mm x 60mmm x 1.2mm cold rolled steel with powder coating

Weight

• • Total weight of the completed unit = 27.7Kg

Uses for Tyre Racking 1.5mWx0.6mDx2.0mH Addon 300Kg/L

Our tyre racking is versatile, whether you are a car enthusiast that needs one rack to store winter tyres or a commercial business that needs to fit out a warehouse.

Car enthusiasts: Our racks are great for storing tyres on the rim. So you can minimise the risk of damage and extend their life. One or two starter racks will clear the garage floor of tyres in no time, keep them organised and at your fingertips when the seasons change, for racing or whenever you need a spare.

Commercial tyre retailers: Our racks come in various heights (2m, 2.4m, 2.7m) and widths (1.0-2.5m) and can be joined together in rows. So you can customise a racking solution to fit your warehouse or shipping container.

Plus to help you get the best out of your warehouse and productivity we offer a free drawing service to plan the dimensions and layout of your tyre storage racks.
