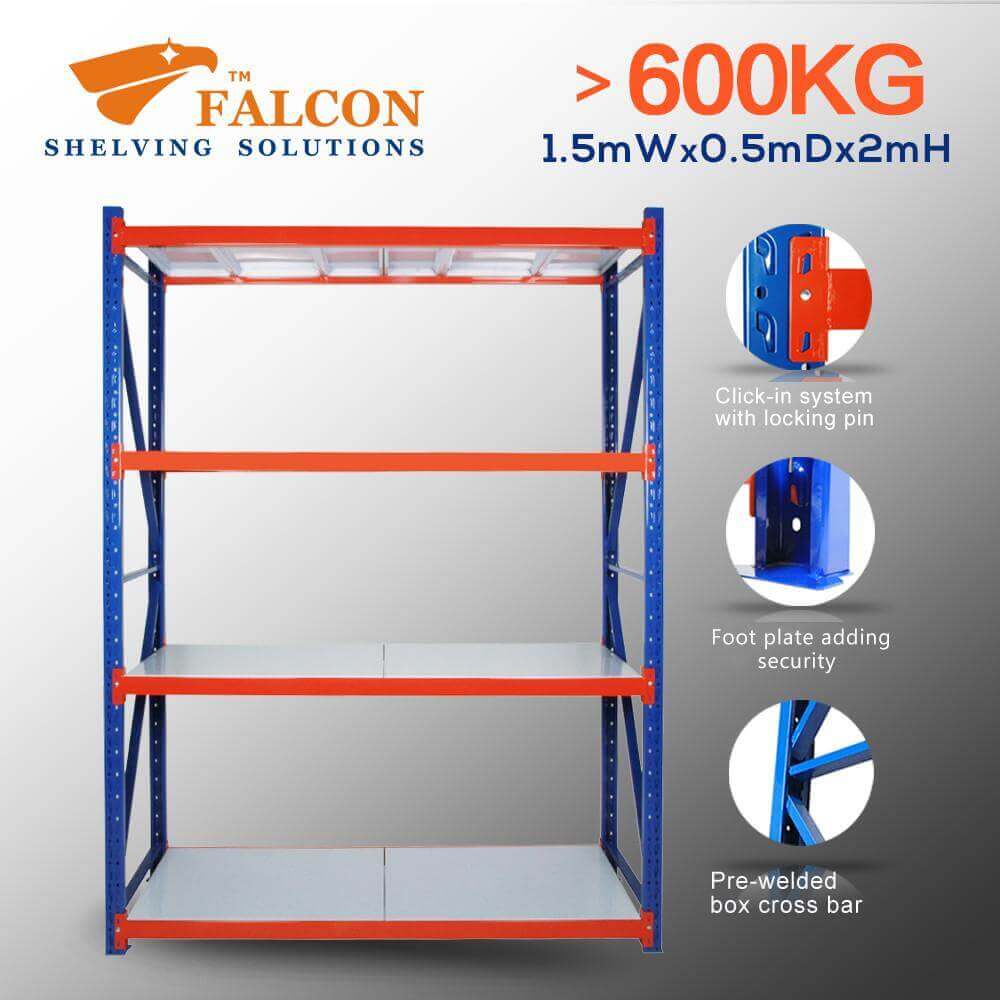

The Heavy Duty Shelving 1.5mWx0.5mDx2.0mH Starter 150Kg/L unit is designed as a stand alone unit and comes with 2 uprights. You can also use it as the first unit in a connected row of shelving.
Product Features
- 4 shelf levels as standard. However, you can purchase extra levels and other components, so you can customise your shelving as needed

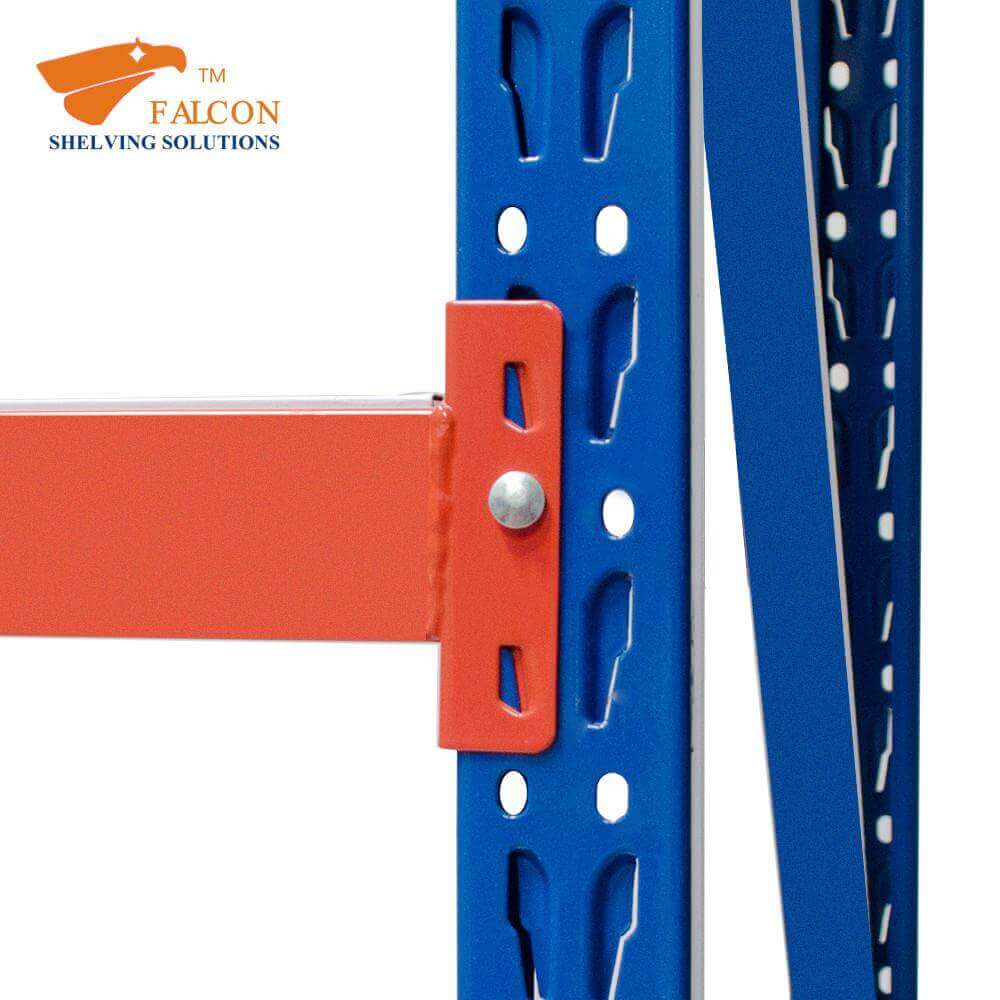

- The starter comes as a disassembled kit that includes everything you need: 2 blue uprights, 8 orange beams, 8 white decks and 16 steel locking pins
- Components slot together for easy DIY assembly. So no tools required
- Made from steel and powder coated for a strong and durable finish. So your investment will last
- Blue uprights come welded together as a single, solid piece for extra strength and rigidity. So no assembly required
- Pre-drilled holes in the footplates. So the units can be fastened to the floor for added safety and stability

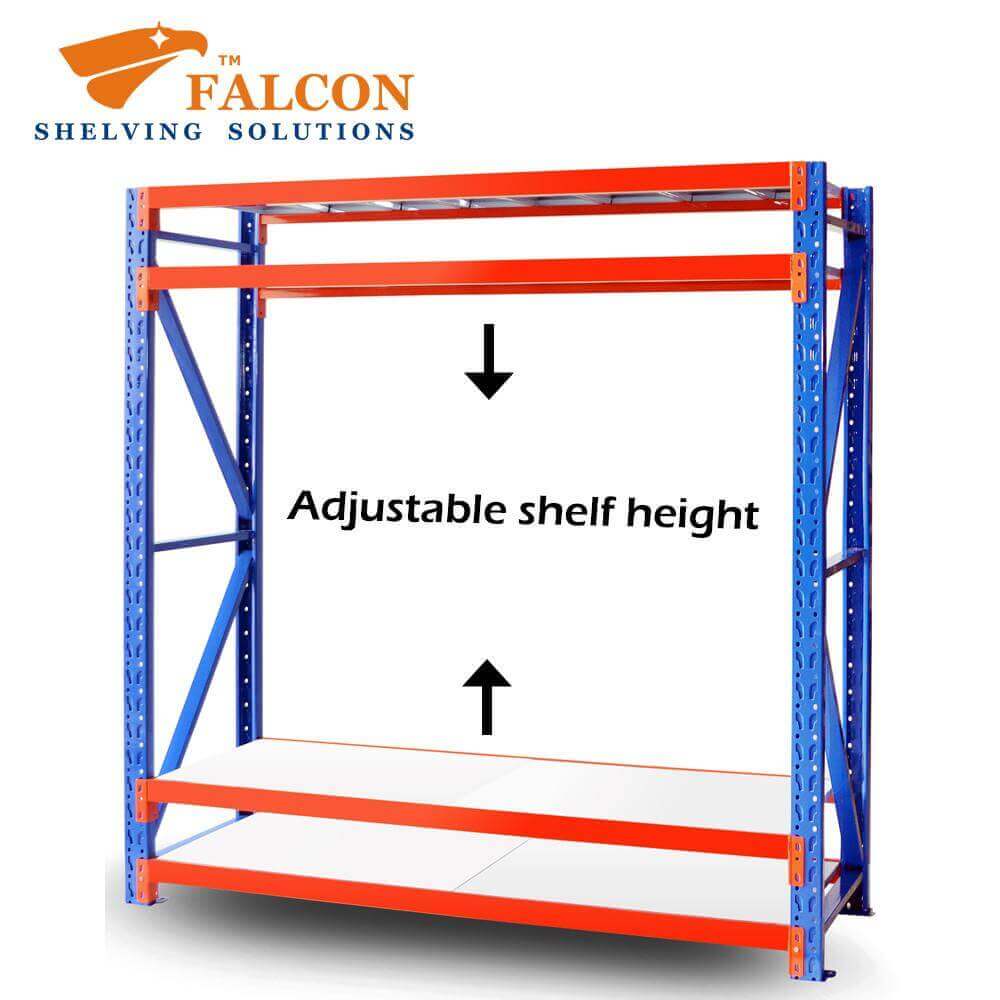

- Shelves are easily adjustable up and down. So set them to any height required

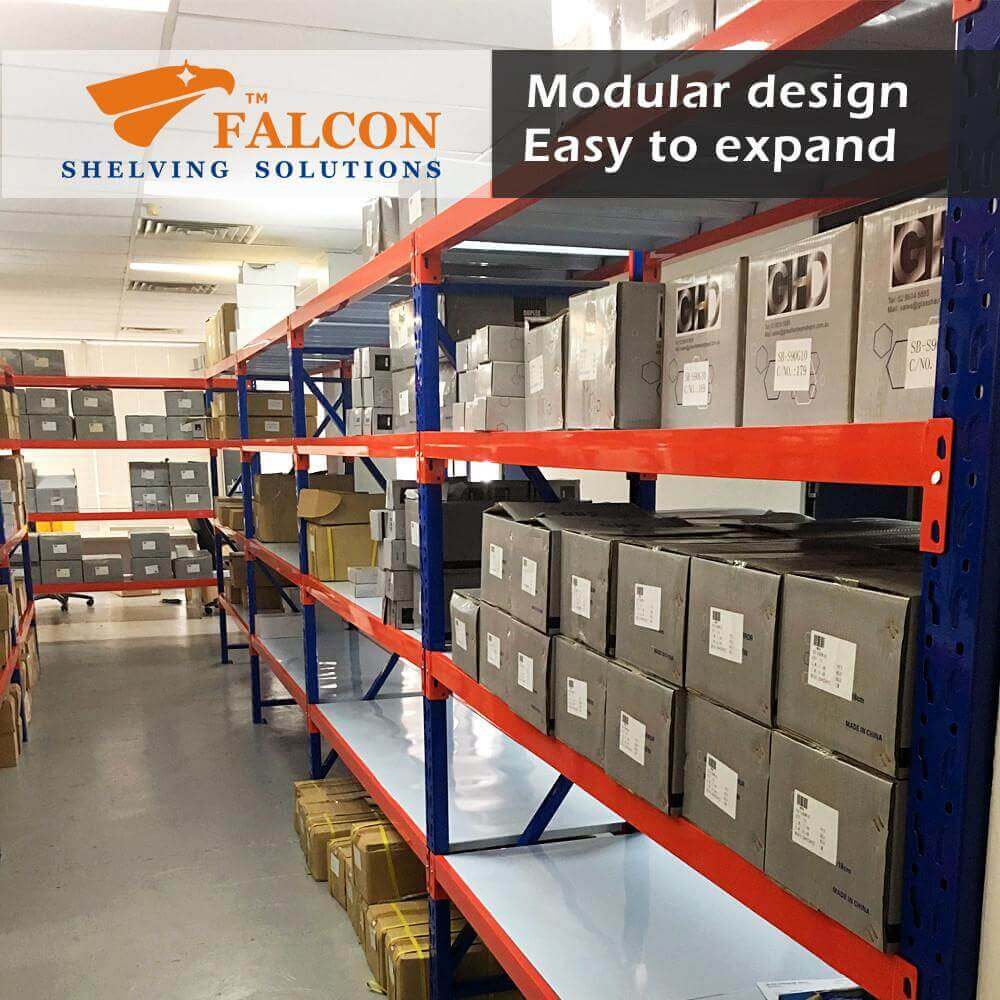

- Connect one or more addon bays to create a shelving row of any length
Specifications
Capacity
-
- 150KG per level (Uniformly Distributed Load)
- 600KG Total Capacity (UDL) per Bay

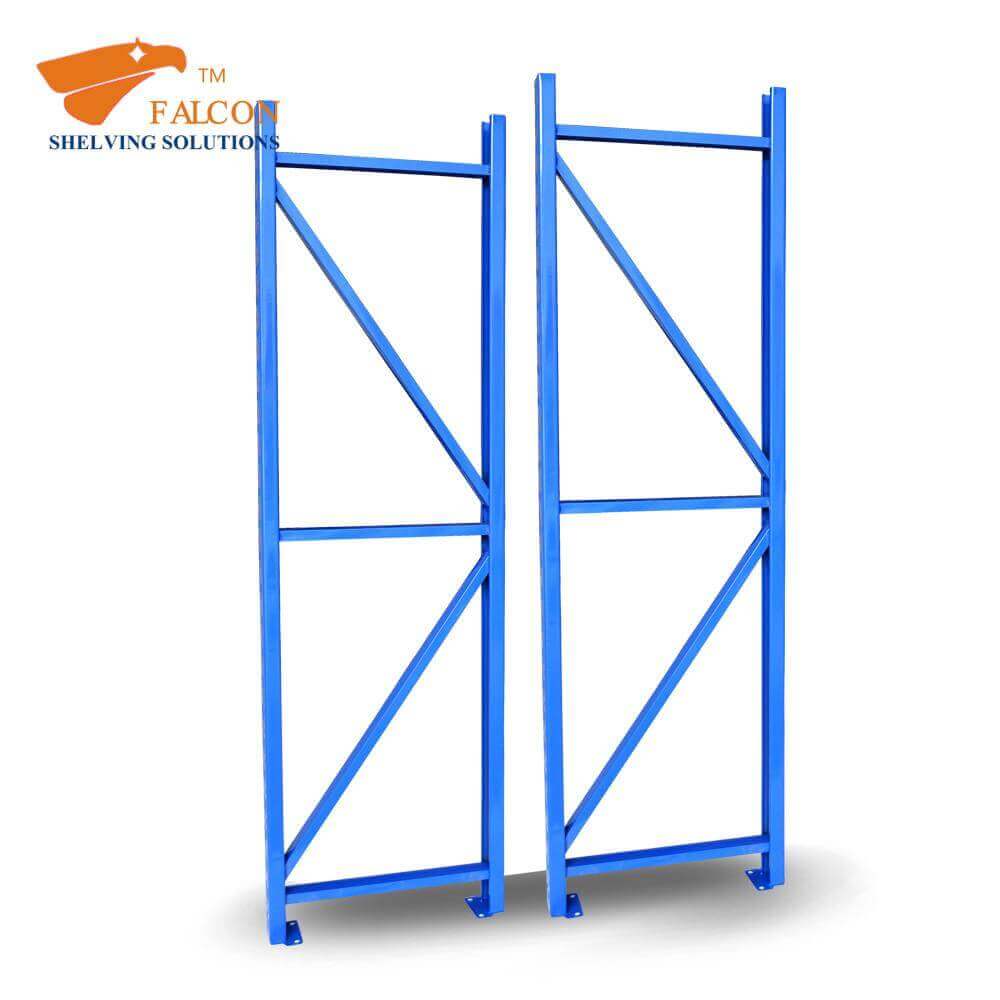

Uprights
-
- Length: 2000mm
- Materials(main poles): 30mm x 50mm x 1mm cold rolled steel with powder coating

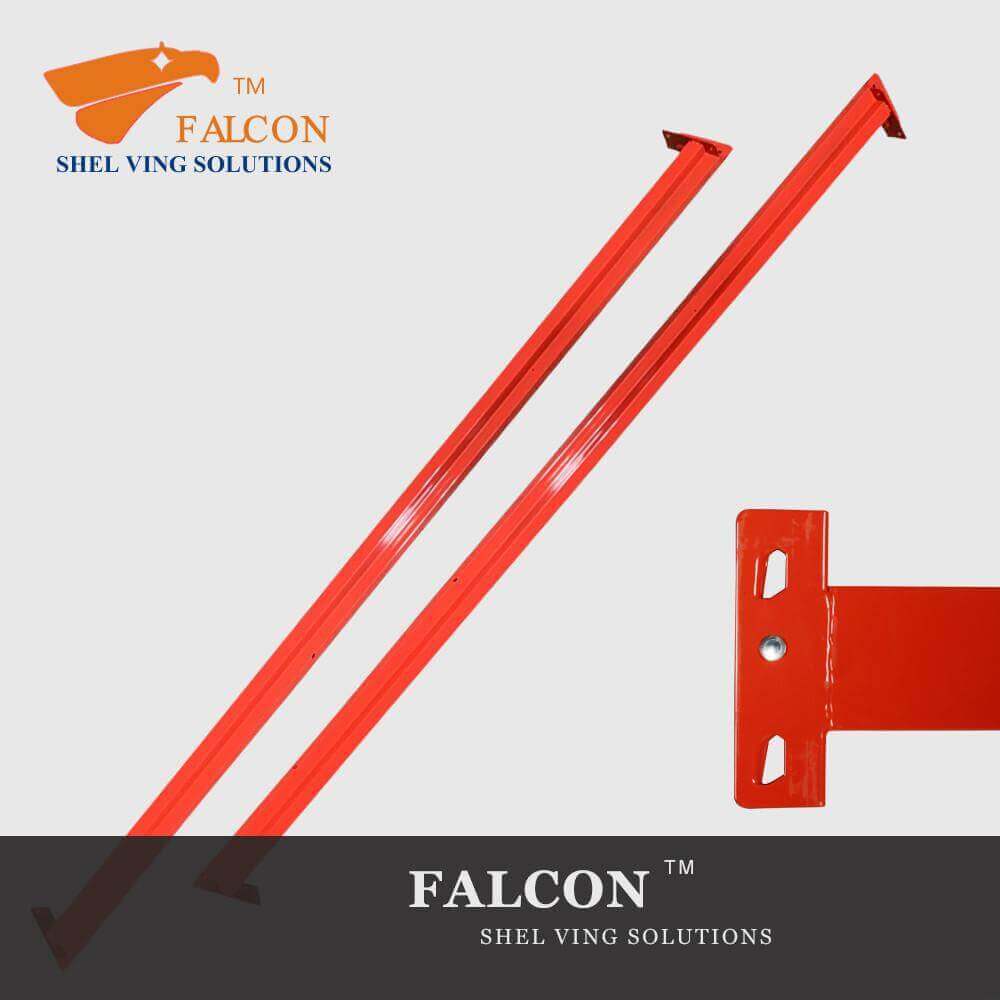

Beams
-
- Length: 1400mm
- Material: 30mm x 50mm x 1.2mm cold rolled steel with powder coating

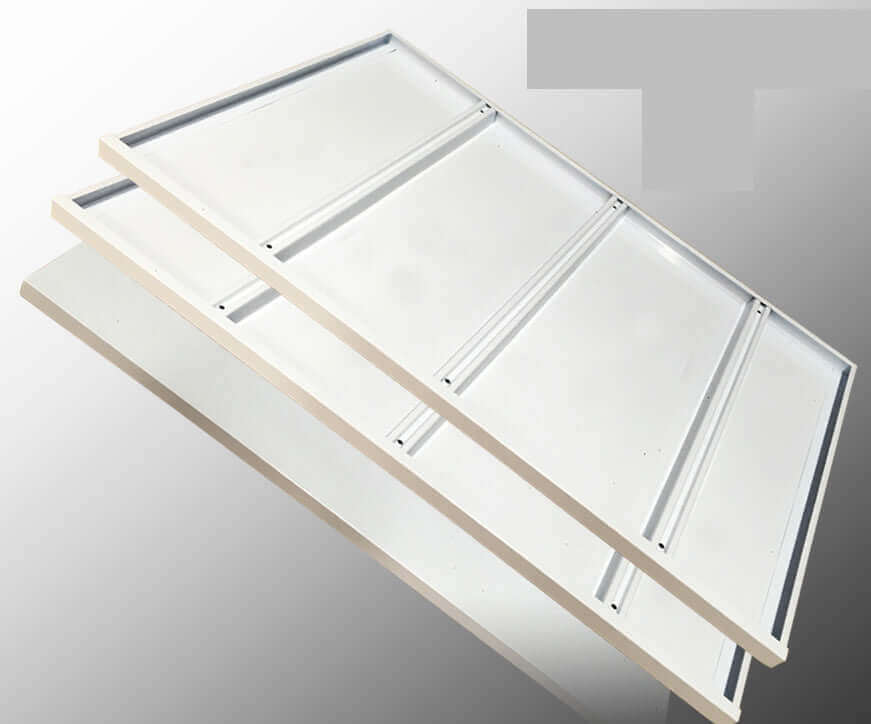

Decks
-
- Length: 700mm
- Material: 0.5mm cold rolled steel with powder coating
Weight
-
- Total weight of the completed unit = 42.2Kg
Uses of Heavy Duty Shelving 1.5mWx0.5mDx2.0mH Starter 150Kg/L
Longspan shelving is a versatile form of storage in a wide range of settings. For example, some of the most common uses of our shelving and their benefits in those instances are as follows:
Commercial warehouse racking: Efficiently stores products and equipment for easy manual putaway and picking by hand. Specifically our longspan units come in a range of heights and widths to maximise the available storage space. Also the units are durable and easy to install.
Retail storage: Products stay organised and are easy to find as a result of the open and easily accessible nature of longspan shelving
Office storage: Offers reliable archive and general storage. So the office stays uncluttered
Workshop and manufacturing: Supports inventory and parts storage. So items are always at hand.
Garage and Shed Storage: Supplies general storage. The colours are aesthetically pleasing and the units are easy to assemble without tools. Also the shelves are easy to disassemble and can be flat packed for transport, when moving home.
Shipping Container Storage: Suits general storage. The units are made from durable materials and are perfect for fitting out shipping containers. Specifically, the footplates are pre-drilled, so they can be fixed to the floor. Also the shelves come in various sizes that fit nicely within 20 and 40 foot shipping containers and so maximise the available storage space.
